Complete Construction Tutorial of Off-Grid Solar Power Generation Systems

By usedcn.com July 22nd, 2026 160 views

Off-grid solar power generation systems are independent power supply equipment that operate without connecting to the municipal power grid, widely used in remote areas, farms, mountain cabins, marine vessels and other scenarios where grid access is difficult. With the advantages of clean energy, stable operation and low long-term costs, they have become a mainstream power solution for global off-grid users. This complete construction tutorial details the whole process of off-grid solar system construction, including core equipment selection, standardized installation layout, parameter debugging and operation testing, providing step-by-step guidance for global installers, B2B buyers and DIY enthusiasts.

The first step of system construction is scientific equipment selection, which directly determines the stable operation of the system. Core components include solar panels, charge controllers, lithium batteries (energy storage), inverters and supporting accessories. For solar panels: select monocrystalline silicon panels (conversion efficiency 18-22%) for high-efficiency power generation, with power matching the actual load demand (calculated as 1.2-1.5 times the total load power). For charge controllers: choose PWM or MPPT controllers (MPPT is preferred for better energy conversion efficiency, suitable for areas with unstable sunlight). For energy storage batteries: lithium iron phosphate batteries are recommended (long service life, high safety) with a capacity matching the daily power consumption and backup days (usually 3-7 days of backup power). For inverters: select pure sine wave inverters (suitable for sensitive equipment such as household appliances and office computers) with power matching the peak load.

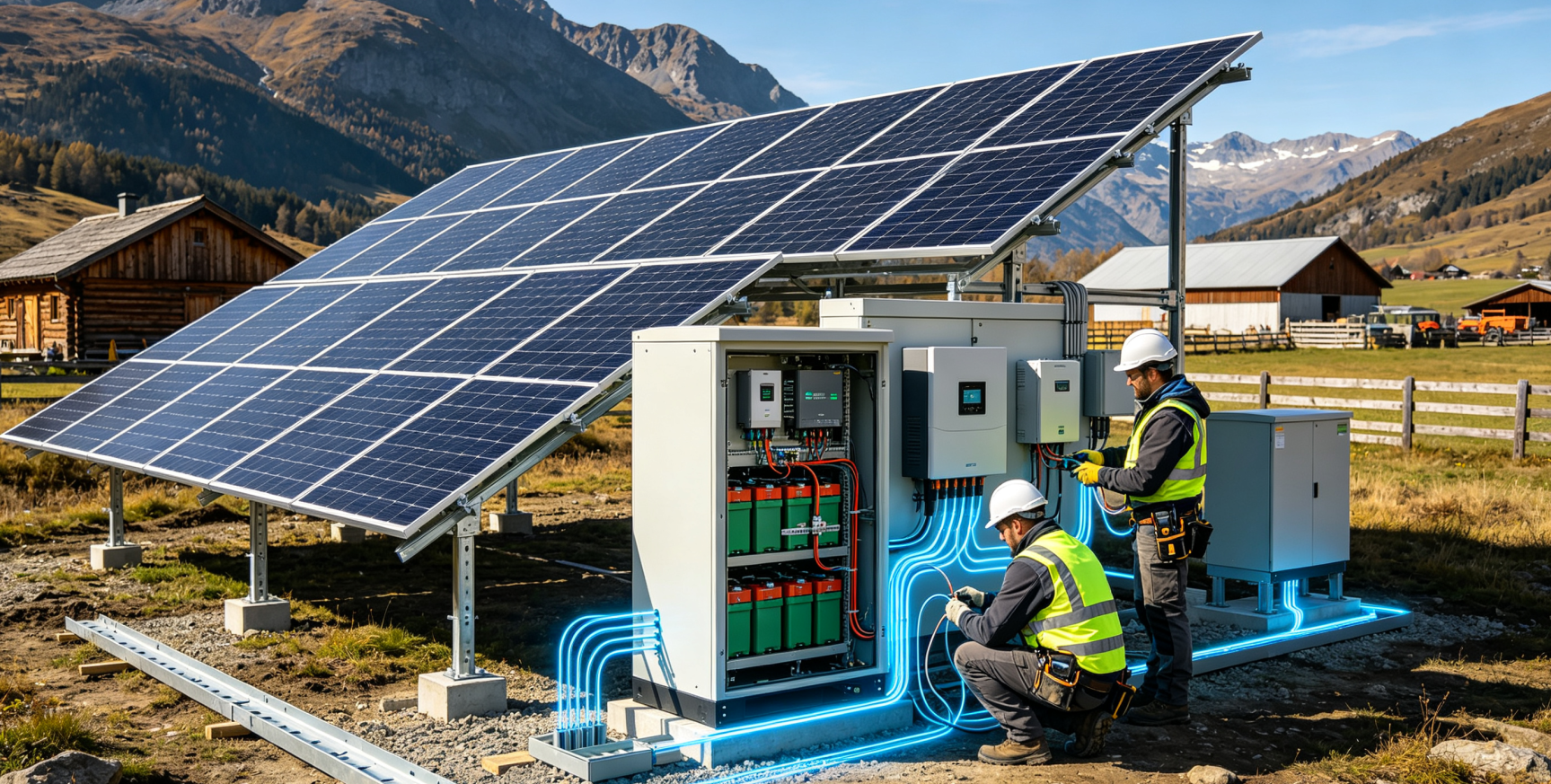

Standardized installation layout is the key to ensuring system efficiency and safety. First, solar panel installation: install the panels at an angle of 30-45° (adjust according to latitude) to maximize sunlight exposure, ensure no shading from trees or buildings, and fix the panels with corrosion-resistant brackets (aluminum alloy or stainless steel). Second, wiring requirements: use copper cables with sufficient cross-sectional area (avoid voltage drop), separate positive and negative wires, and use waterproof connectors for outdoor wiring to prevent short circuits and leakage. Third, equipment layout: install the charge controller, battery and inverter in a dry, ventilated and fireproof cabinet, with a distance of more than 30cm from the ground to avoid moisture and corrosion; ensure the battery cabinet has good heat dissipation to prevent thermal runaway.

Parameter debugging and operation testing are essential to ensure the system operates normally. First, pre-commissioning: check the wiring connections (confirm positive and negative poles are not reversed), battery voltage and panel output voltage. Second, parameter setting: set the charging and discharging parameters of the charge controller (charging voltage 14.2-14.6V for 12V systems, discharging cut-off voltage 10.5-11V) and the protection parameters of the inverter (overload, overvoltage, undervoltage protection). Third, operation testing: start the system, test the output voltage and frequency (220V/50Hz or 110V/60Hz according to regional standards), connect the load step by step (from small to large) and monitor the system operation status. Fourth, long-term monitoring: use the system's monitoring function to track power generation, battery SOC (State of Charge) and equipment operation data, and adjust parameters in time according to actual usage.

In addition, pay attention to daily maintenance: clean the dust on the solar panels regularly (once a month) to ensure power generation efficiency; check the wiring connections and battery status every quarter; avoid overcharging and overdischarging the battery to extend its service life. This construction tutorial complies with international installation standards (IEC 62109, UL 1741), suitable for global off-grid solar system construction. By following the standardized process, users can build a safe, efficient and durable off-grid solar power generation system to meet independent power supply needs.
