Parallel Use Methods of Multiple Gas Generators

By usedcn.com July 21st, 2026 29 views

In high-power power supply scenarios such as industrial workshops, commercial buildings, large-scale construction sites and emergency power stations, a single gas generator often cannot meet the large load demand, so multiple gas generators need to be used in parallel. However, irregular parallel operation will cause serious problems such as voltage imbalance, frequency deviation, current circulation and equipment burnout, even leading to power supply interruptions and safety accidents. This article systematically explains the standardized parallel use methods of multiple gas generators, including core steps such as parameter synchronization, line connection and load distribution, providing professional guidance for global operators and maintenance personnel.

Parameter synchronization is the prerequisite for safe parallel operation, and the consistency of voltage, frequency and phase of each generator must be ensured. First, voltage synchronization: adjust the excitation voltage of each gas generator to make the output voltage difference within ±2% of the rated value, avoiding voltage shock caused by excessive differences. Second, frequency synchronization: control the engine speed of each generator to keep the output frequency consistent (50Hz or 60Hz, depending on regional standards), with a frequency difference not exceeding ±0.5Hz. Third, phase synchronization: ensure that the phase sequence and phase angle of each generator are completely consistent, which is the core to prevent current circulation and equipment damage.

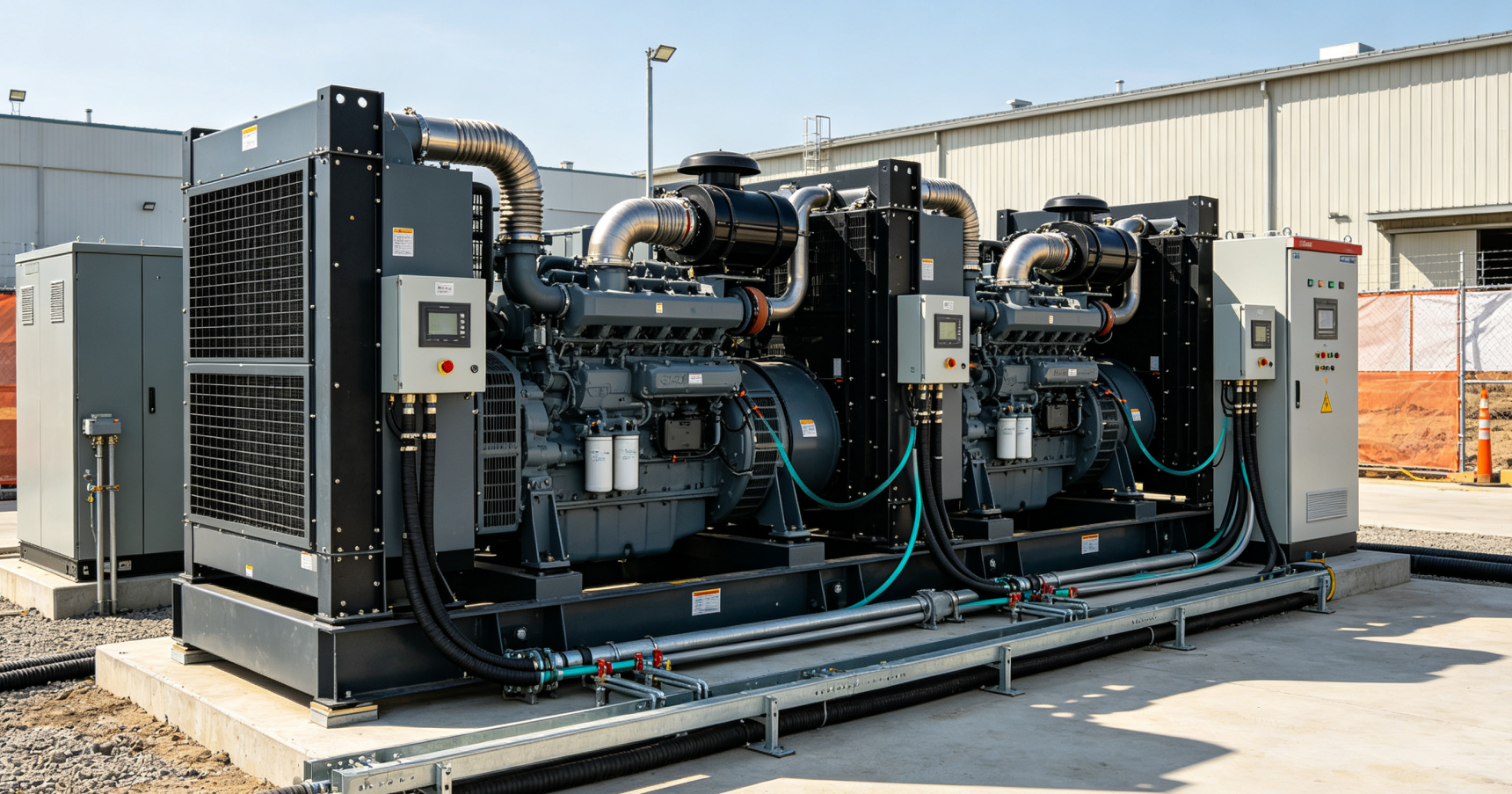

Standardized line connection is the guarantee for stable parallel operation. It is recommended to use a dedicated parallel cabinet (synchronization cabinet) to connect multiple gas generators, which integrates synchronization control, load distribution and safety protection functions. First, connect the output terminals of each generator to the parallel cabinet through copper cables of sufficient cross-sectional area to reduce line resistance and voltage drop. Second, install a circuit breaker and overcurrent protection device on each branch circuit to cut off the faulty unit in time and avoid affecting the entire parallel system. Third, ensure good grounding of the parallel cabinet and each generator to prevent electric shock and electromagnetic interference.

Scientific load distribution is key to maximizing equipment efficiency and extending service life. After the parallel system is started, the load should be distributed evenly among each generator, with the load difference between units not exceeding 10% of the rated load. Most parallel cabinets are equipped with automatic load distribution (ALD) systems, which can adjust the engine speed and excitation current of each generator in real time to achieve balanced load. For manual operation, operators need to adjust the throttle and excitation device according to the load display to avoid overloading a single unit.

In addition, operators should pay attention to daily inspection and fault handling. Before parallel operation, check the oil level, fuel supply and cooling system of each generator to ensure normal operation. During operation, monitor the voltage, frequency, current and temperature of each unit in real time. If abnormal phenomena such as voltage imbalance or overcurrent are found, stop the parallel operation immediately and check the parameters and line connections. After operation, cut off the load first, then disconnect the parallel cabinet, and finally stop each generator in sequence. By following these standardized methods, global users can ensure the safe, stable and efficient operation of multiple gas generators in parallel, meeting high-power power supply needs in various scenarios.
