Ventilation and Heat Dissipation Design of Diesel Generator Rooms

By usedcn.com July 22nd, 2026 64 views

Diesel generator rooms are core facilities for emergency and standby power supply, widely used in commercial buildings, industrial plants, hospitals and data centers worldwide. Poor ventilation and heat dissipation will lead to indoor temperature exceeding 45℃, causing equipment overheating, power attenuation (by 10-30%), shortened engine service life and even safety accidents such as thermal runaway and fire. This article introduces professional ventilation and heat dissipation design schemes for diesel generator rooms, complying with international standards (ISO 8528, NFPA 37), ensuring long-term stable and safe operation of indoor diesel generator sets for global engineers, contractors and facility managers.

The core of ventilation and heat dissipation design is scientific air volume calculation, which is based on the rated power of the generator set and indoor heat generation. The total required air volume includes two parts: combustion air volume and cooling air volume. For combustion air volume: each kW of generator power requires 0.5-0.8 m³/min of fresh air to ensure complete fuel combustion (insufficient oxygen will cause carbon deposition and fuel waste). For cooling air volume: calculated according to the indoor temperature difference (the temperature difference between air inlet and outlet should be controlled at 8-12℃), and the cooling air volume for a 500kW generator set is about 800-1000 m³/min. It is recommended to use professional calculation software or consult the generator manufacturer to avoid insufficient or excessive air volume (excessive air volume will increase energy consumption and noise).

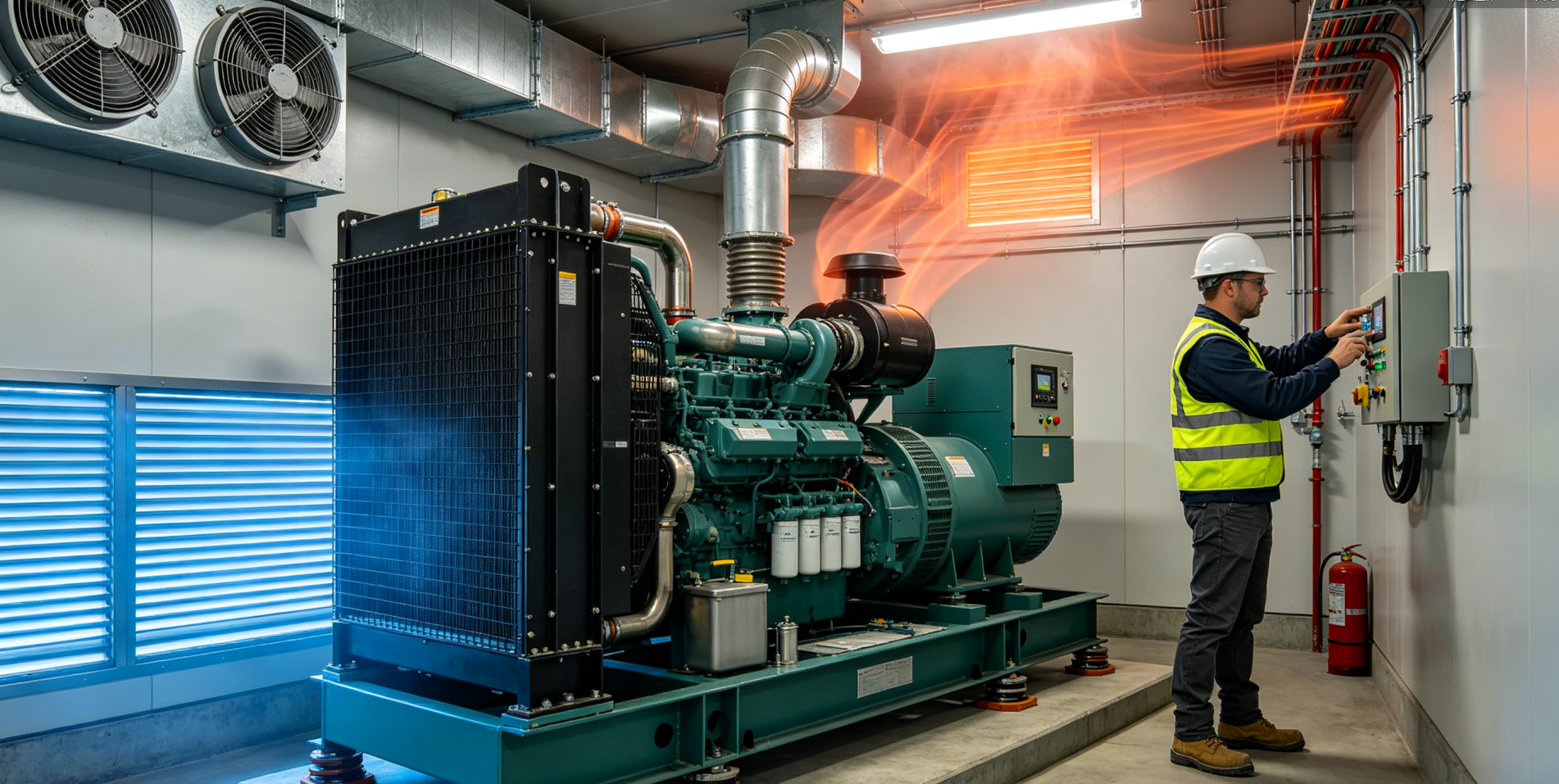

Reasonable air inlet and outlet layout is the key to ensuring smooth air circulation and uniform heat dissipation. First, air inlet design: set air inlets at the lower part of the generator room (10-30cm above the ground) to introduce low-temperature fresh air, with the area 1.2-1.5 times that of the air outlet (to ensure sufficient air intake). Install dust-proof and rain-proof grilles on the air inlet to prevent impurities and rainwater from entering, and configure air filters for dusty environments to avoid dust accumulation affecting equipment operation. Second, air outlet design: set air outlets at the upper part of the room (near the ceiling) and above the generator radiator to discharge high-temperature exhaust air, with the outlet direction consistent with the hot air flow to accelerate heat dissipation. For silent generator rooms, the air inlet and outlet should be equipped with sound-absorbing devices to coordinate heat dissipation and noise reduction (noise control at 50-60dB).

Mechanical ventilation and auxiliary cooling systems are essential for closed generator rooms and high-power equipment. For small and medium-sized generator rooms (below 300kW), natural ventilation (relying on air convection) can be used in well-ventilated areas, but mechanical ventilation (axial flow fans, centrifugal fans) is recommended for closed rooms to ensure stable air volume. For large-power generator sets (above 500kW), install dedicated cooling fans matching the generator radiator, and configure air conditioning or exhaust fans for high-temperature environments (above 35℃) to reduce indoor ambient temperature. In addition, set temperature sensors and automatic control systems: when the indoor temperature exceeds 40℃, the ventilation and cooling system starts automatically; when the temperature drops to 35℃, it stops to save energy.

Key precautions for design and operation: 1. Avoid air short circuit (ensure the distance between air inlet and outlet is more than 3m to prevent fresh air from being directly discharged without heat exchange). 2. Regularly clean air filters and exhaust ducts (once a quarter) to avoid blockage affecting heat dissipation efficiency. 3. Ensure the ventilation system is interlocked with the generator set (the ventilation system starts 3-5 minutes before the generator starts, and stops 5-10 minutes after shutdown). 4. Comply with local fire protection standards (install fire dampers in air ducts to prevent fire spread). Adhering to these design schemes and precautions can effectively solve the heat dissipation problem of diesel generator rooms, extend equipment service life and reduce operation and maintenance costs for global users.
