Wiring Layout Specifications of Solar Power Generation Systems

By usedcn.com August 7th, 2026 36 views

Standardized wiring layout is the fundamental guarantee for safe operation, low energy loss and long service life of photovoltaic power generation systems. Irregular wiring construction easily causes excessive line voltage drop, cable overheating aging, short-circuit faults, electric leakage hazards and low overall power generation efficiency. Many construction teams ignore professional wiring specifications during on-site installation, such as mismatched wire gauges, disorderly cable arrangement, unqualified grounding and inadequate waterproof sealing, bringing potential safety risks to household rooftop PV and large commercial photovoltaic power stations. Abiding by unified international wiring standards helps reduce hidden dangers and maximize power generation benefits.
This article elaborates core wiring layout specifications for solar power systems from multiple construction dimensions. First is scientific cable selection: PV special photovoltaic cables resistant to ultraviolet radiation, high temperature and weathering must be adopted for panel side DC lines; cross-sectional area is configured according to string current and transmission distance to restrain voltage dro

within the allowable range. AC output cables connecting inverters to distribution cabinets select copper core cables matched with rated current to avoid overload heating.

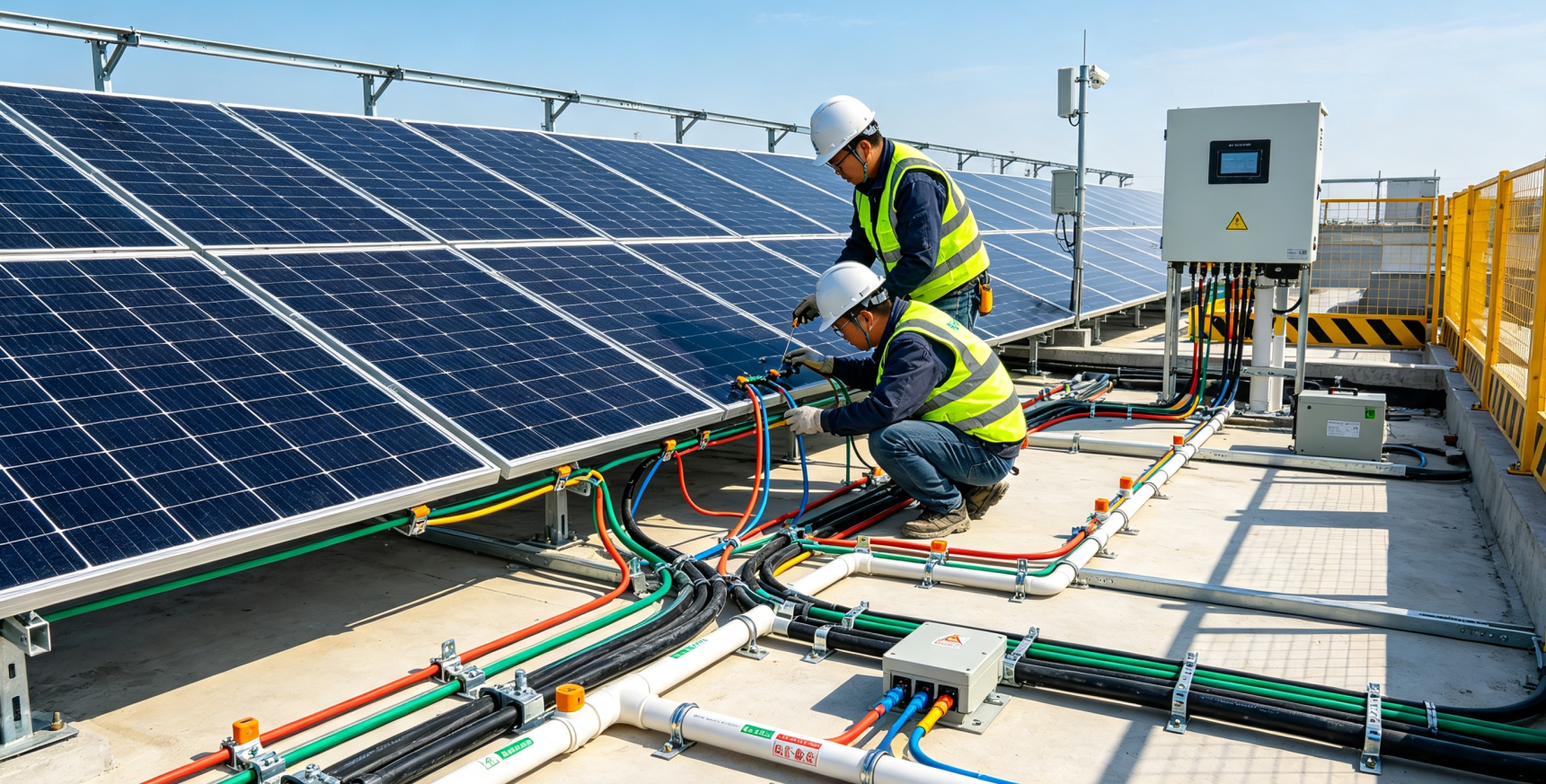

Reasonable routing planning is crucial. DC cables and AC cables are laid separately with certain spacing to prevent electromagnetic interference; exposed outdoor cables are fixed with special wire clamps instead of random binding. Cables along wall surfaces, roof supports are laid neatly with bending radius complying with requirements to prevent internal conductor fracture. Buried underground cables need protective conduits and anti-compression measures, avoiding sharp component extrusion damage.
Grounding protection is a mandatory specification. Metal supports of solar panels, inverter shells, distribution boxes and cable shielding layers are reliably connected to the overall grounding grid to resist lightning surge and static electricity accumulation. Waterproof and insulation treatment focuses on cable joints, wiring terminals and box penetration positions; use waterproof terminals, sealing glue and insulation sleeves to stop rainwater infiltration causing short circuits under outdoor long-term exposure.
Other standardized requirements include reserved maintenance wiring space, clear identification tags for each string circuit, overcurrent fuses and DC circuit breakers configured on DC branches for timely fault isolation. After wiring completion, conduct insulation resistance testing and continuity inspection before system power-on debugging. Strictly implementing these wiring layout standards cuts line power loss, lowers failure probability, satisfies IEC, NEC and mainstream regional electrical access specifications, passes local grid acceptance smoothly, ensures stable and safe long-term operation of distributed solar systems for residential, commercial and large ground-mounted photovoltaic projects globally.http://www.usedcn.com
