Manufacturer & Wholesale Supplier of Commercial PV Energy Storage Power Supply in China, OEM & ODM Customization Available

Name: Manufacturer & Wholesale Supplier of Commercial PV Energy Storage Power Supply in China, OEM & ODM Customization Available
Availability: InStock

No.t002

We are a Chinese manufacturer supplying 5–50kWh cloud smart residential BESS, 100–10000kWh commercial industrial energy storage and mobile energy storage vehicles, supporting full OEM & ODM customized wholesale at factory direct price. Our LiFePO4 PV storage systems include all-in-one wall-mounted ESS, stackable low/high voltage battery modules and hybrid inverters, with 10ms seamless EPS off-grid backup, cloud remote monitoring, IP65 waterproof protection and over 6000 cycle life.Products hold

50-199 pcs

$150.00

200-499 pcs

$140.00

500-999 pcs

$132.00

1000-1999 pcs

$125.00

2000-4999 pcs

$118.00

>=5000 pcs

$110.00

Get a Quote

Download

View all downloads

Description
产品详情

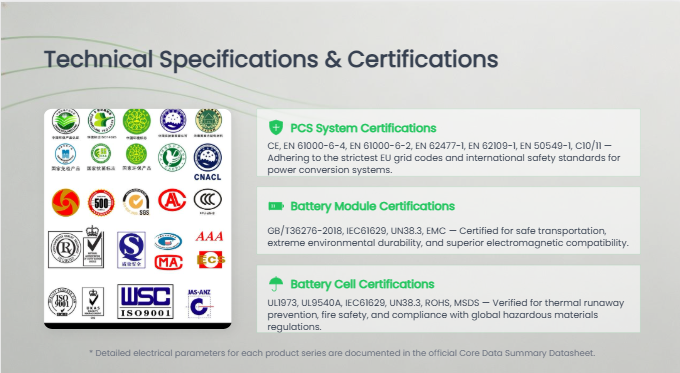

Full Set of Certifications & Qualifications

Battery Certifications

UL1973, UL9540A, IEC62619, UN38.3, RoHS & MSDS

PCS (Power Conversion System) Certifications

CE Certificate, EN62477, EN61000, EN50549, C10/11 Grid Standard

Enclosure Anti-Corrosion & Protection Rating for Complete Unit

IP54 ingress protection rating, C3 industrial & commercial anti-corrosion grade

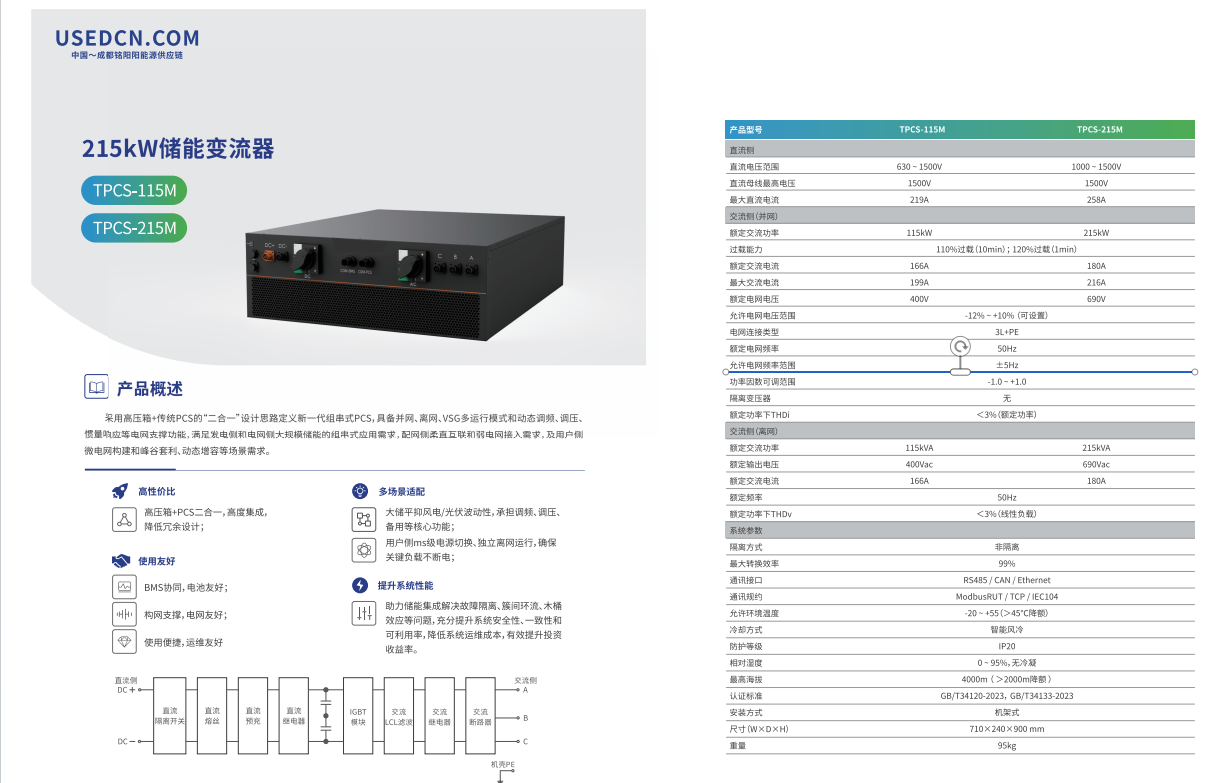

Parameters	Item	TPCS-115M	TPCS-215M
DC Side	DC Voltage Range	630 ~ 1500V	1000 ~ 1500V
	Max DC Bus Voltage	1500V	1500V
	Max DC Current	219A	258A
AC Side (Grid-Tied)	Rated AC Power	115kW	215kW
	Overload Capability	110% overload (10min); 120% overload (1min)	110% overload (10min); 120% overload (1min)
	Rated AC Current	166A	180A
	Max AC Current	199A	216A
	Rated Grid Voltage	400V	690V
	Allowable Grid Voltage Range	-12% ~ +10% (configurable)	-12% ~ +10% (configurable)
	Grid Connection Type	3L+PE	3L+PE
	Rated Grid Frequency	50Hz	50Hz
	Allowable Grid Frequency Range	±5Hz	±5Hz
	Adjustable Power Factor	-1.0 ~ +1.0	-1.0 ~ +1.0
	Isolation Transformer	None	None
	THDi under Rated Power	＜3% @ rated power	＜3% @ rated power
AC Side (Off-Grid)	Rated AC Power	115kVA	215kVA
	Rated Output Voltage	400Vac	690Vac
	Rated AC Current	166A	180A
	Rated Frequency	50Hz	50Hz
	THDv under Rated Power	＜3% (linear load)	＜3% (linear load)
System Parameters	Isolation Mode	Non-isolated	Non-isolated
	Max Conversion Efficiency	99%	99%
	Communication Interface	RS485 / CAN / Ethernet	RS485 / CAN / Ethernet
	Communication Protocol	Modbus RUT / TCP / IEC104	Modbus RUT / TCP / IEC104
	Operating Ambient Temp	-20 ~ +55℃ (>45℃ derating required)	-20 ~ +55℃ (>45℃ derating required)
	Cooling Method	Intelligent Air Cooling	Intelligent Air Cooling
	Protection Level	IP20	IP20
	Relative Humidity	0 ~ 95%, non-condensing	0 ~ 95%, non-condensing
	Max Altitude	4000m (derate above 2000m)	4000m (derate above 2000m)
	Compliance Standard	GB/T34120-2023, GB/T34133-2023	GB/T34120-2023, GB/T34133-2023
	Installation Method	Rack-mounted	Rack-mounted
	Dimension (W×D×H)	710 × 240 × 900 mm	710 × 240 × 900 mm
	Weight	95kg	95kg

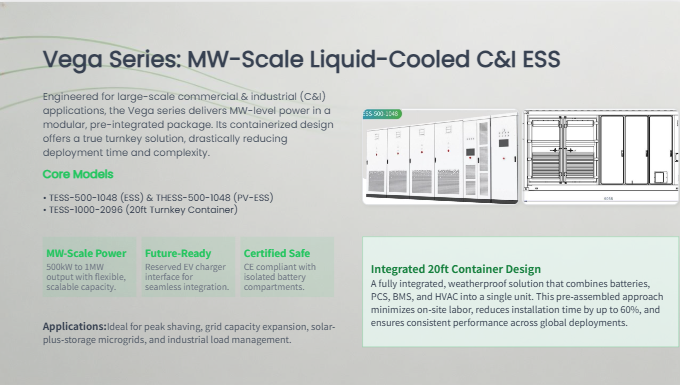

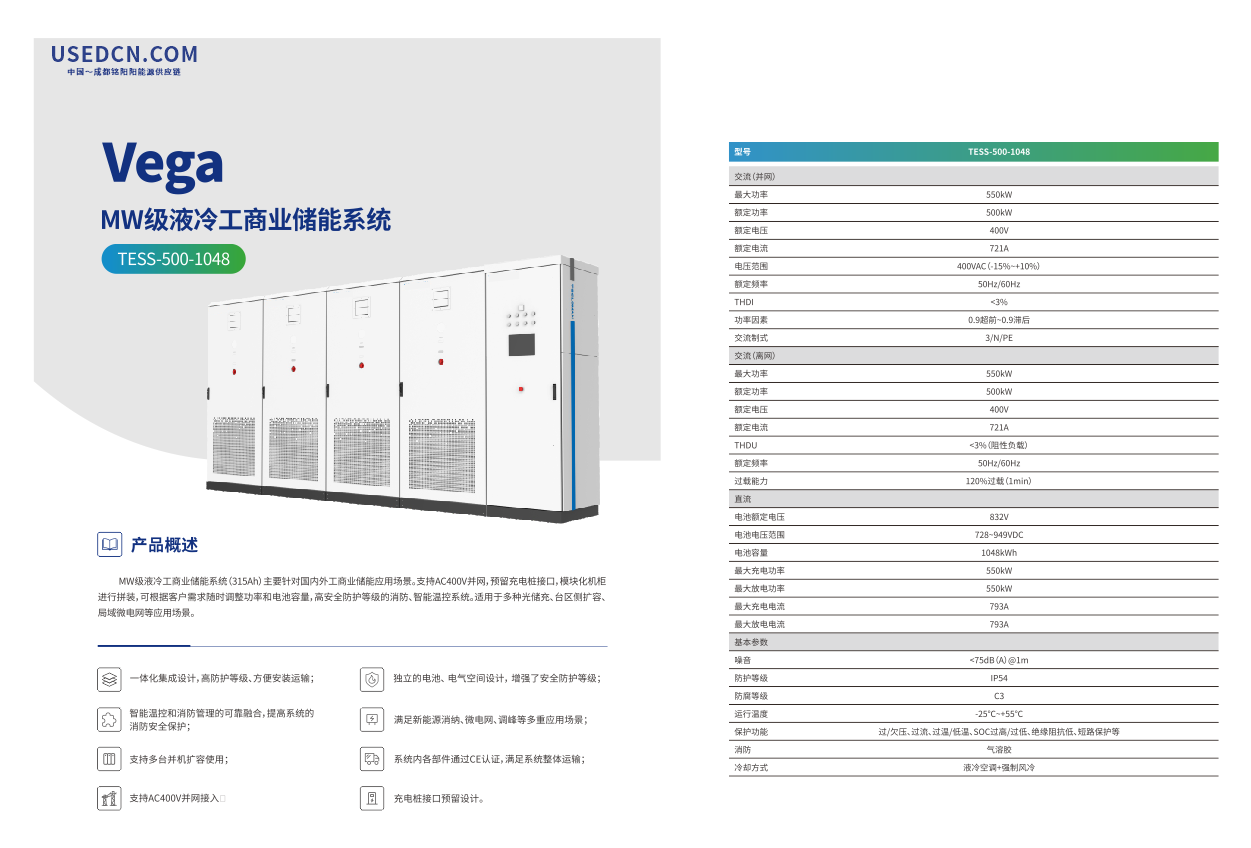

Category	Parameter Item	TESS-500-1048 Spec
Grid-tied AC Output	Max Power	550kW
	Rated Power	500kW
	Rated Voltage	400V
	Rated Current	721A
	Voltage Operating Range	400VAC (-15% ~ +10%)
	Rated Frequency	50Hz / 60Hz
	THDi	＜3%
	Adjustable Power Factor	0.9 lag ~ 0.9 lead
	AC Wiring Method	3P+N+PE
Off-grid AC Output	Max Power	550kW
	Rated Power	500kW
	Rated Voltage	400V
	Rated Current	721A
	THDv (Linear Load)	＜3%
	Rated Frequency	50Hz / 60Hz
	Overload Capability	120% overload for 1 minute
DC Battery Side	Nominal Battery Voltage	832V
	Battery Voltage Window	728 ~ 949 VDC
	Rated Battery Capacity	1048kWh
	Max Charging Power	550kW
	Max Discharging Power	550kW
	Max Charging Current	793A
	Max Discharging Current	793A
General Specifications	Noise Level	≤75dB(A) @ 1 meter distance
	IP Protection Class	IP54
	Anti-corrosion Grade	C3
	Operating Ambient Temperature	-25℃ ~ +55℃
	Protection Functions	Overvoltage, undervoltage, overcurrent, overtemperature, high/low SOC, insulation monitoring, short-circuit protection
	Fire Suppression Solution	Aerosol Fire Extinguishing System
	Cooling Mode	Liquid Cooling Air Conditioner + Forced Air Cooling
